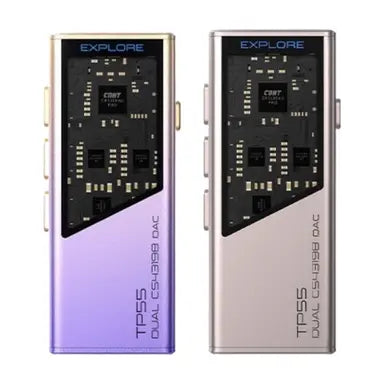

Dual-DAC Architecture: Two Cirrus Logic CS43198 flagship-grade DAC chips handle decoding for high-resolution, low-distortion audio. - Dual Op-Amp Stage: A pair of SGM8262 op-amps drives the analogue output stage. - Powerful Balanced Output: 551mW at 32Ω from the 4.4mm balanced jack, enough for most over-ear headphones and high-impedance in-ear monitors; the 3.5mm single-ended output delivers 151mW at 32Ω (THD+N under 1%). - High-Resolution Format Support: PCM up to 768kHz/32bit and native DSD64, DSD128 and DSD256. - Microphone Support: The 3.5mm port supports microphone input for HD voice calls and works with mainstream communication and conferencing apps. - Specifications: DAC Cirrus Logic CS43198 x2 | Op-amp SGM8262 x2 | USB controller CB5100 | outputs 3.5mm single-ended and 4.4mm balanced.
